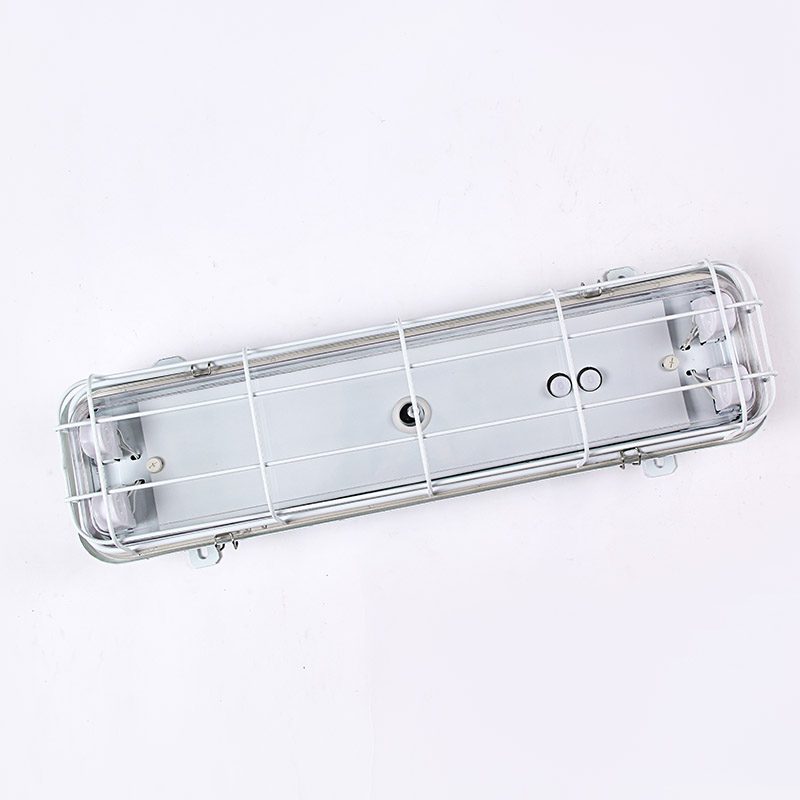

Marine Fluorescent Pendant Light – JCY-22
Get in Touch with Us! a Quote Now ! an Answer Now !
Products Categories
Navigation Signal Light
Marine Spot/Search Light
Incandescent Light
Marine Fluorescent Light
Explosion-Proof Light
Marine Electric Connector
Marine Accessories
The scope
Fit for Illumination of water dripping, water spattering, water coagulating place in ships, such as oven cabin, dry cabin, tunnel,
pipeline and weather deck etc.
Products characteristic
-
- The shell adopts good quality steel plate tensioned, lampshade adopts injection of PC and has the seal structure.
- ln order to prevent from electric shocking, equipped with a copper earthing rod with the mark ground connection in and out the lights.
- Plug-in type lamp holder, equipped wiring terminal inside, convenient to connect.
- The lamp equipped B15 lamp holder, used for 24V/15W emergency bulb, the edge of lampshade marks the RED marking. remark clear that need the emergency device when order.
- Equipped compensating capacitance inside the lamp, also has a good effect of start.
Adopt standard
Conform to IEC60092-306-209 standard and GRADE ENTRY NORMS FOR STEEL SHIPS.
Specification
| IMPA CODE |
Type | Power | Voltage | Power factor | Lamp Holder | Cable Outside Diameter | Protection Class | Weight | Remark |
| 791882/791513 | JCY22-2 | 2x20W | 110V/60HZ 220V/50HZ 220V/60HZ |
>0.85 | G13 | Φ14-Φ16 | IP56 | 5.2kg | —— |
| JCY22-2E | 5.3kg | With Emergency | |||||||
| 791862/791909
791872/791911 |
JCY22-2EF | 6.9kg | With Emeraencvand Mesh Cover | ||||||
| JCY32-2 | 2x30W | 110V/60HZ
220V/50HZ 220V/60HZ |
>0.85 | G13 | Φ14-Φ16 | IP56 | 9.1kg | — | |
| JCY32-2E | 9.2kg | With Emergency | |||||||
| JCY32-2EF | 10.0kg | With Emergency and Mesh Cover | |||||||
| 791804/7S1087 | JCY42-2 | 2x40W | 110V/60HZ 220V/50HZ 220V/60HZ |
>0.85 | G13 | Φ14-Φ16 | IP56 | 9.3kg | — |
| JCY42-2E | 9.4kg | With Emergency | |||||||
| 791864/791867
791874/781B77 |
JCY42-2EF | 10.2kg | With Ememencyand Mesh Cover |
